OBDII port and cable

Hi,

Please post picture and the location of the MG ZS EV OBDII port.

What is the recommended OVMS cable for the MG ZS EV(left / right / straight)?

I have ordered MG ZS EV (will have it in 14 days) and i want to order OVMS + cable for CAN bus sniffer.

Thanks

TomShenberger
Adding OBD2 for torque app or OVMS

Hi

I have recieved from my thai friend instructions for adding OBD port for torque app via gateway module on passenger side.

Connectors needed are:
https://www.aliexpress.com/item/4000843988232.html

https://www.aliexpress.com/item/32840011550.html



From here the way is very clear. :-)

Shane
Hi tom, can you get that

Hi tom, can you get that translated or upload a better quality image so we can see the detail?

Shane

TomShenberger
DIY CABLE INSTRUCTION

Hi

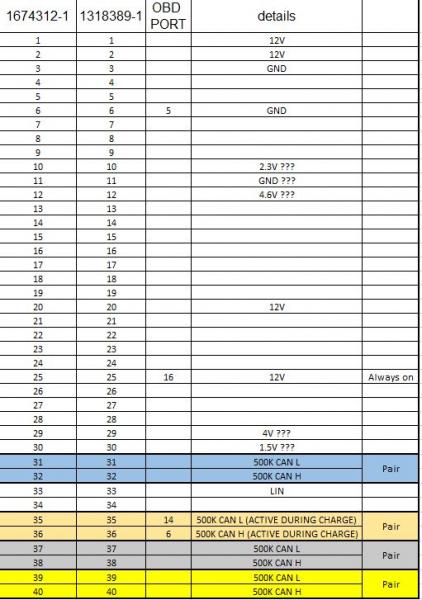

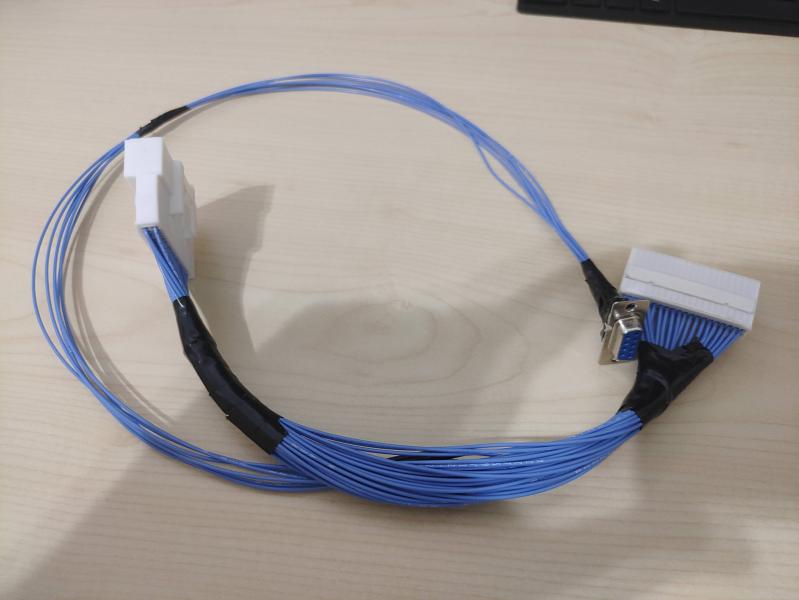

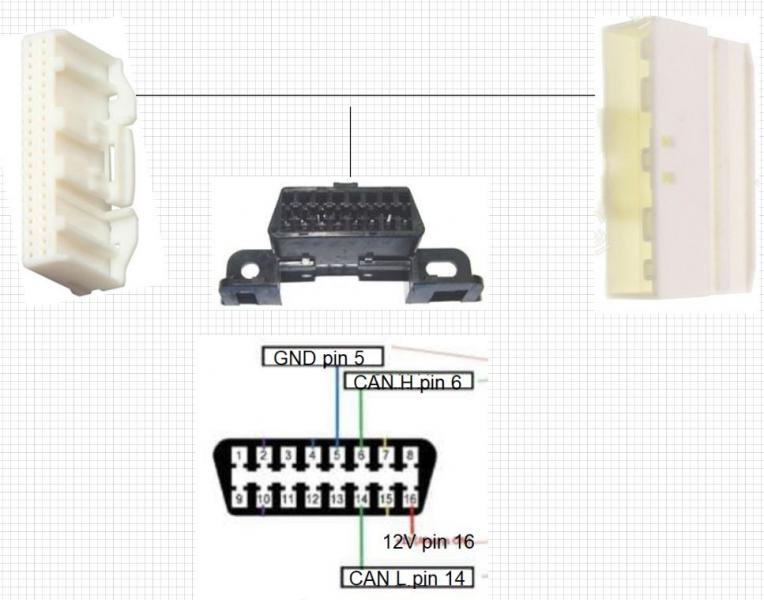

I have uploaded cable details for DIY assy (crimp tool is needed)

It is only to emulate what Captian DIY did, I have not test it yet (the items are on shipping)

Do it at your own risk!!!!

mgzsevrob
mgzsevrob's picture
40 pin harness

Thanks for above info, I will try it this weekend. Also ordered 40 pin pre-made harness for Nissan (skyline camera loom)  which looks like what is needed here so hoping to add OBD branch to it.



speculatrix
speculatrix's picture
Which side

When you say passenger side, is that the left or the right?

mgzsevrob
mgzsevrob's picture
Gateway Module is bolted to

Gateway Module is bolted to firewall bracket behind glovebox

labrador4000
On my left-hand drive MG ZS

The Left hand drive models, as delivered in the Netherlands have the gateway module mounted under the steering wheel. back to back with the Bosch module.

javiermi
This is probably a silly

This is probably a silly question, but do we actually need a Y cable to connect a OVMS unit?

Also in the forum somebody said crimping would be required, I thought the whole purpose of using the Y cable was so you won't need to do any cuts/ joins to the current cables. Or is crimping required, because some of the cables are not corrected to the right pins?

Thanks



glynhudson
No y-cable and no

No y-cable and no modifications are required. Just plug the ODB2 cable straight in





javiermi
Once again, thanks for

Once again, thanks for clarifying things



McCririe
Find the ODB2 port to plug the OVMS

Can someone tell me where to find the ODB2 port to plug the OVMS into on the MG ZS EV ? please

Shane
In the UK its in the drivers

In the UK its in the drivers footwell just behind the lower right part of the dash, you will need to get your head in the foot well to see it

ARvanHAS
Driving on the other side of
